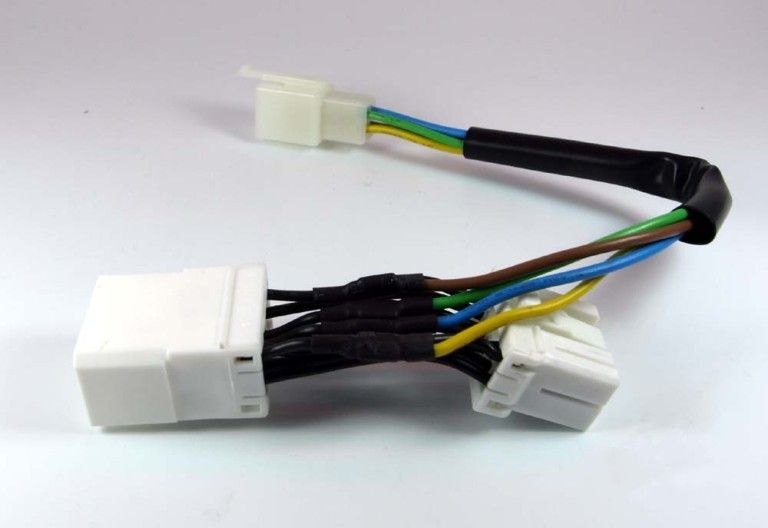

This wiring harness fits most Harley models from 1997-2013 as well as Softail models from 1997-2017. Works with FLHR Series, FLHT Series, FLHX Series, FLRT Series, FLST Series (1997-2017), and FLTR Series. Refer to the application guide below to determine your plug and play connector. No splicing on the bike is required. An isolator can be added to separate the bike and trailer load. This harness is for a 5 wire trailer system only. This kit does not include the plug end so that you can match whatever plug is installed on your trailer. Flat plug ends are available to add to your order under the options section if desired.
Not all wiring harnesses are readily in stock. If you need this item immediately, please contact us to determine a lead time.
Application Guide: (AAMP plugs are white, Molex plugs are black)
If your bike is:
2010-13 FLTRX
2010-13 FLHX
These 2 bikes use the 6 pin Molex
2009-13 FLTRSE
2010-13 FLHXSE
These 2 bikes use the 8 pin Molex
If your bike is not one of the 4 listed above, you will use AAMP Connector
1997-2017 FLST (all except SE)
1997-2013 FLHT (all)
1997-2011 FLHR (all except SE)
2006-09 FLHX
1997-2008 FLT & FLTR
2011-13 FLTRU
2011 FLTRUSE
